20mm Nero®Drainage Cell

Rainsmart® Drainage Cell System provides a perfect Solution for sub-soil drainage application for creating successful Roof Garden, without any traditional problems associated with cracking or leakage. The 20mm Nero® Drainage Cells provides a uniform surface as well as an internal void space for effective draining of excess water.

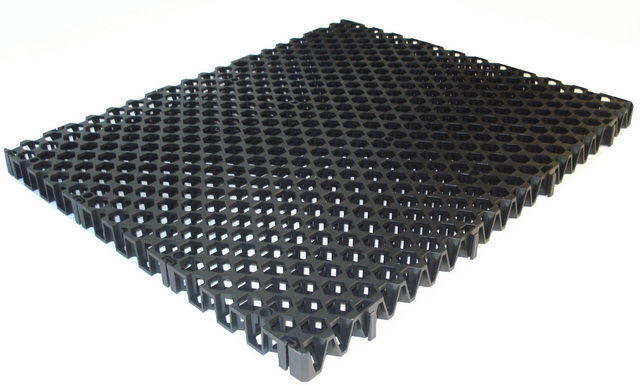

The 20mm Nero® Drainage cell system has a unique Diamond CUP structure which provides water retention for passive irrigation and helps building a perch water table in the above soil profile for the vegetation to flourish in prolonged dry periods.

20mm Nero® Drainage Cells is made from recycled Polypropylene and is inert to soil borne chemicals and bacteria. Nero cells shallow and effective drainage profile helps landscapers to make use of mature plants on roof garden which needs soil depth and water retention properties.

High Summer temperatures can cause thermal expansion in concrete and can cause waterproofing to crack, 20mm Nero® Drainage Cell system due to its unique design and void properties help this heat to escape and hence reduce the risk of cracking, enhancing building life.

System Benefits:

• Very high compressive load carrying capacity of up to >160 tons/m2.
• Very high lateral flow capacity.
• Maintains actual void size for effective drainage after backfill & compaction.
• Fit-in system easy to cut and comes in pre-clipped panels.
• Low weight, only 2.90 kg/sqm compared to 250 kgs/sqm of gravel for the same effective drainage,-hence reduces deck loads.
• Thin - reduces depth of cover and allows the use of mature planting in shallow conditions.
• Holds and creates a perch water table, providing ideal moist conditions for plant growth.
• Reduces hydrostatic forces upon sub-grade walls.
• Easy to shop, store and install comes in pre-clipped panels.
• Reduce the risk of waterproofing to crack due to thermal expansion in hot periods.
• Environmentally friendly made from selected Recycled Polypropylene
• Recharges Groundwater Table through principle of infiltration when used on natural Ground surface.
• Light weight hence no heavy machinery or skilled labour required.
• Site space utilization and minimum site disruption.

Applications:

Rainsmart® 20mm Nero Drainage Cell^® is a lightweight, yet incredibly strong drainage panel, ready to be covered with Geotextile fabric for vertical and horizontal drainage applications, including:

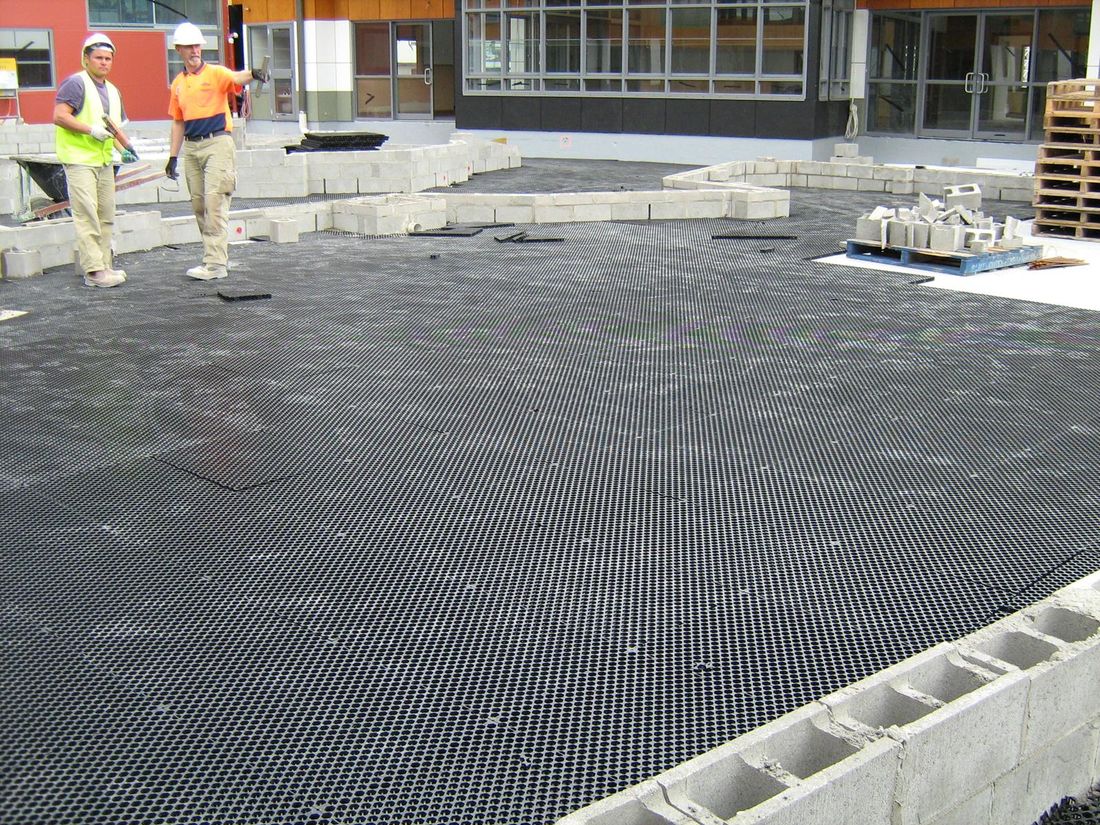

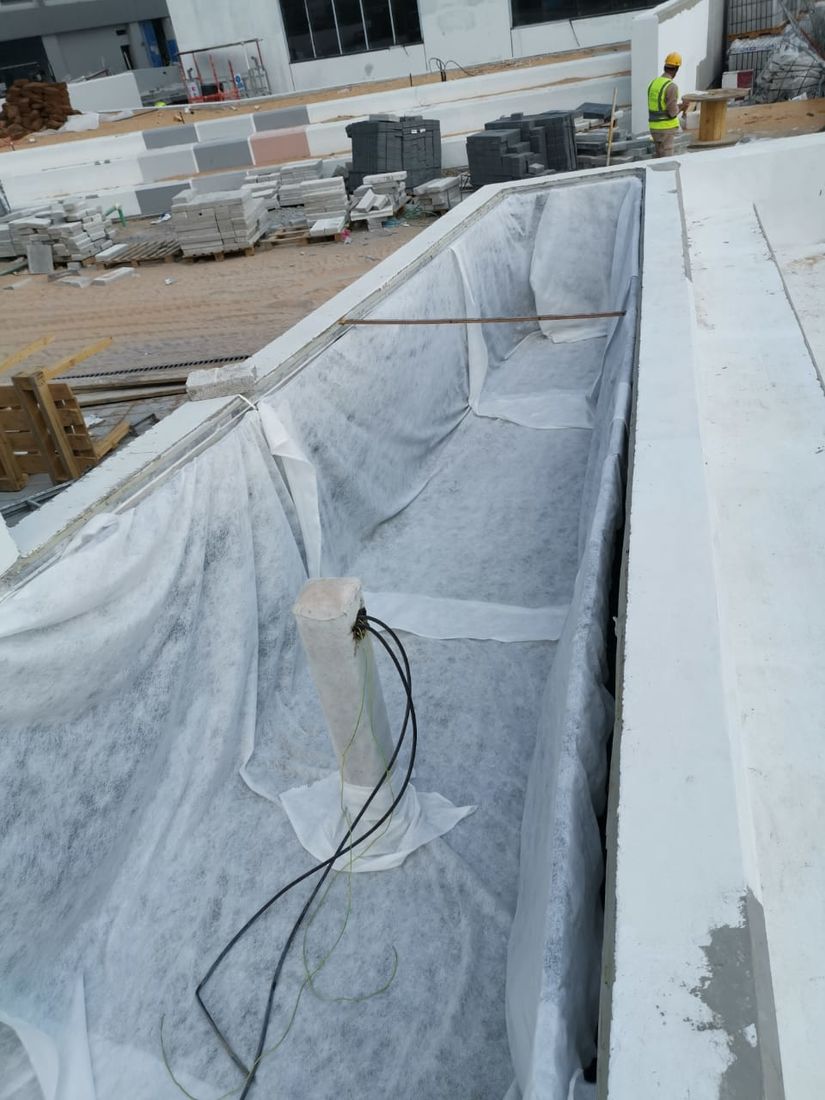

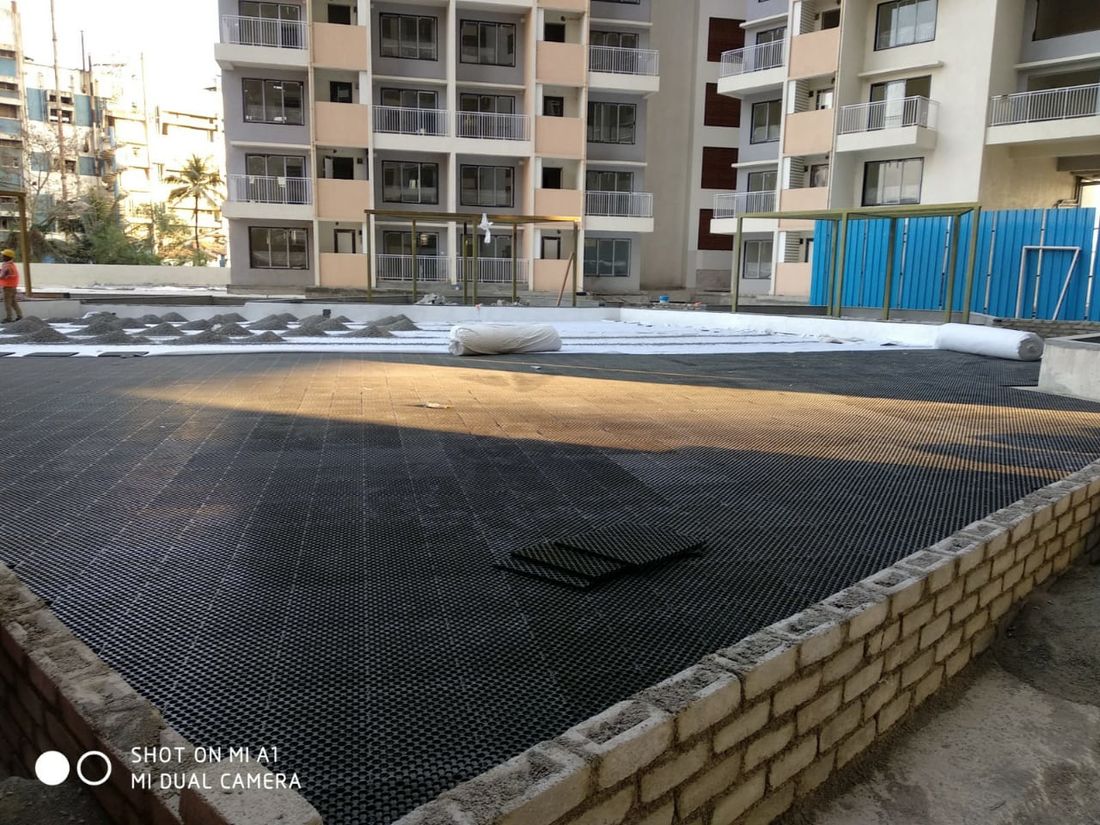

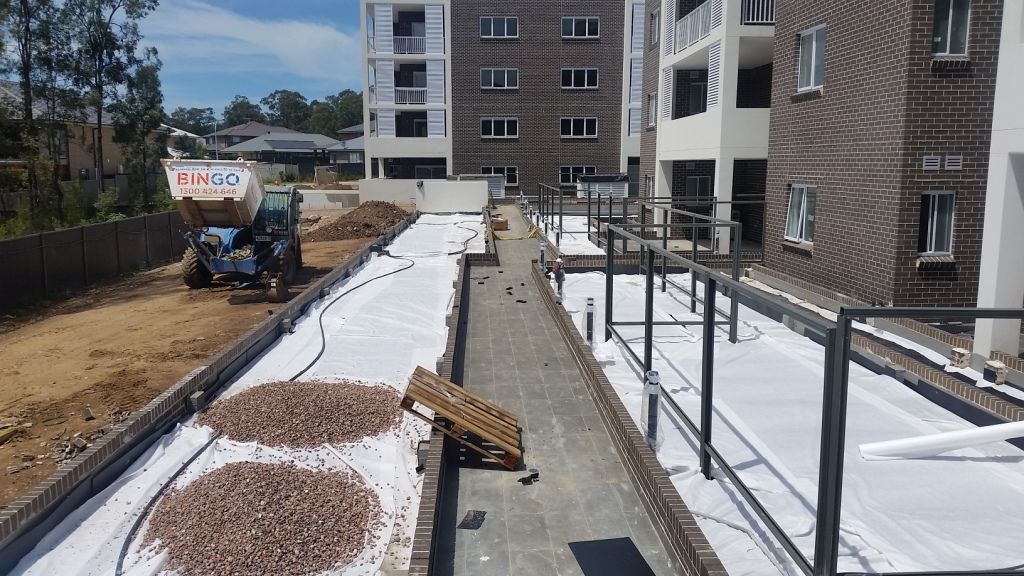

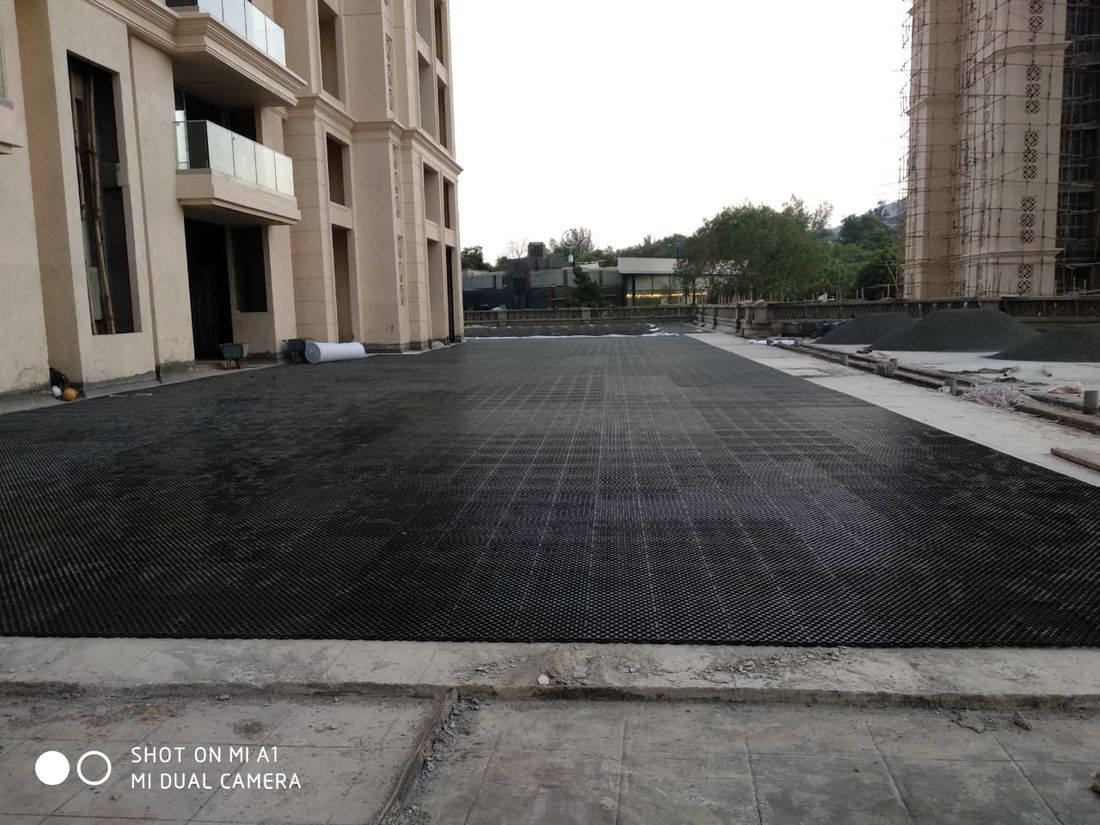

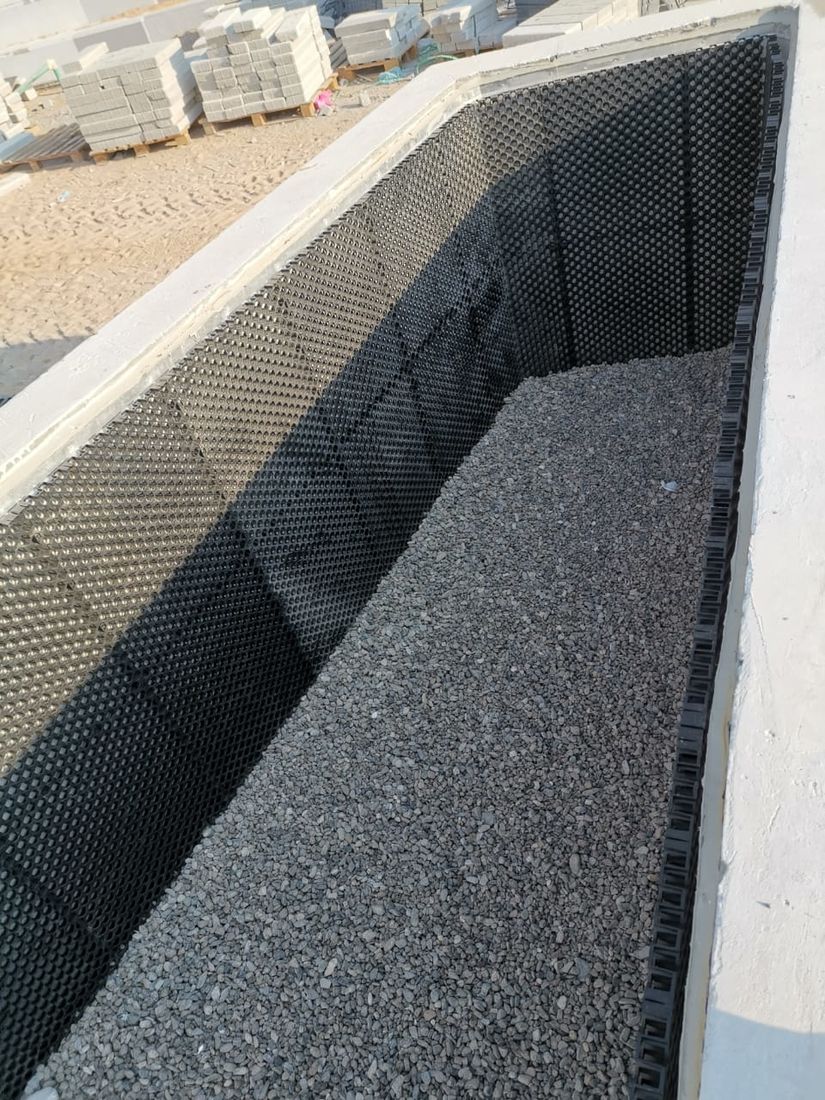

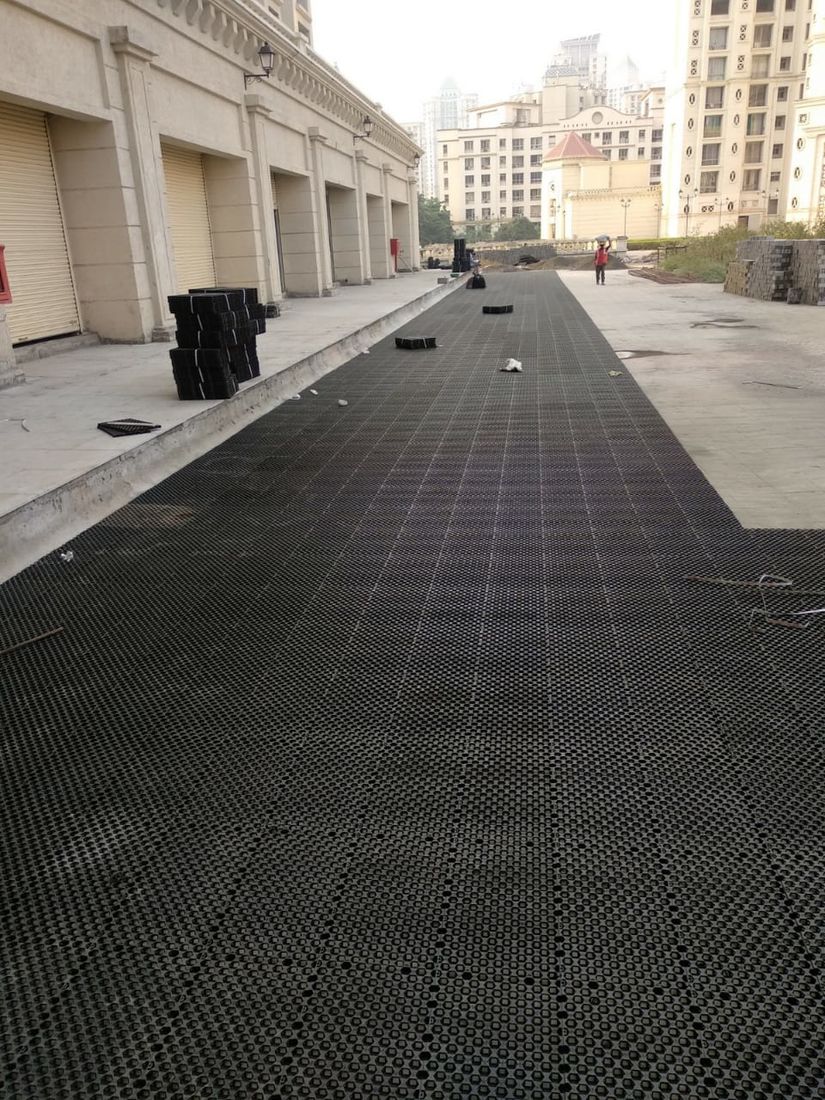

• Roof Decks, Planter Boxes, Podium gardens
• Landfills Drains (gas & Leachade Collection)

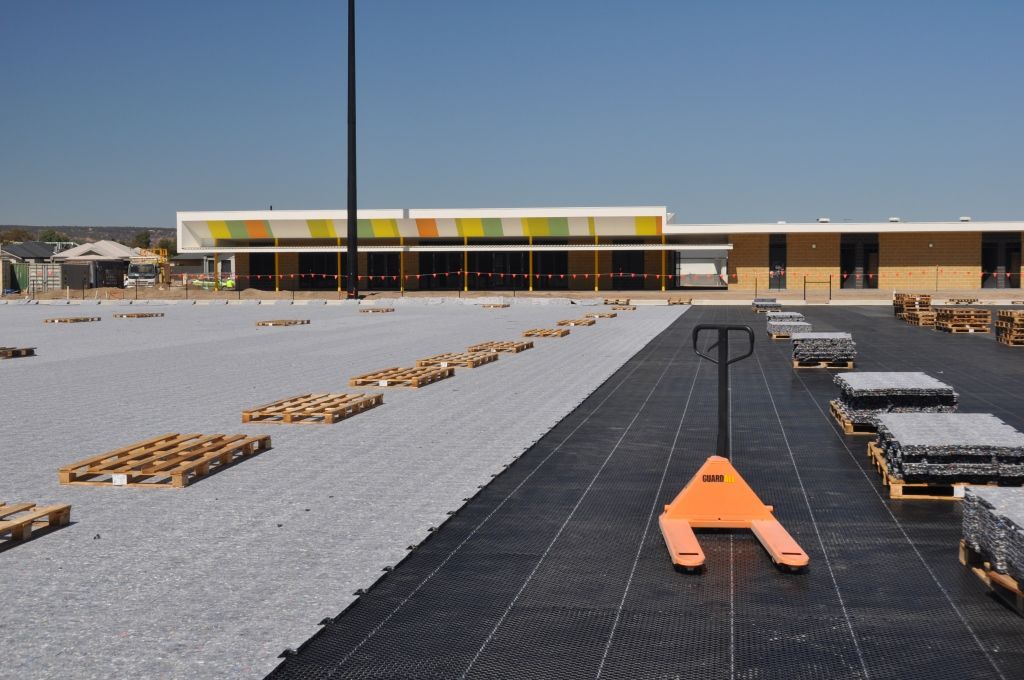

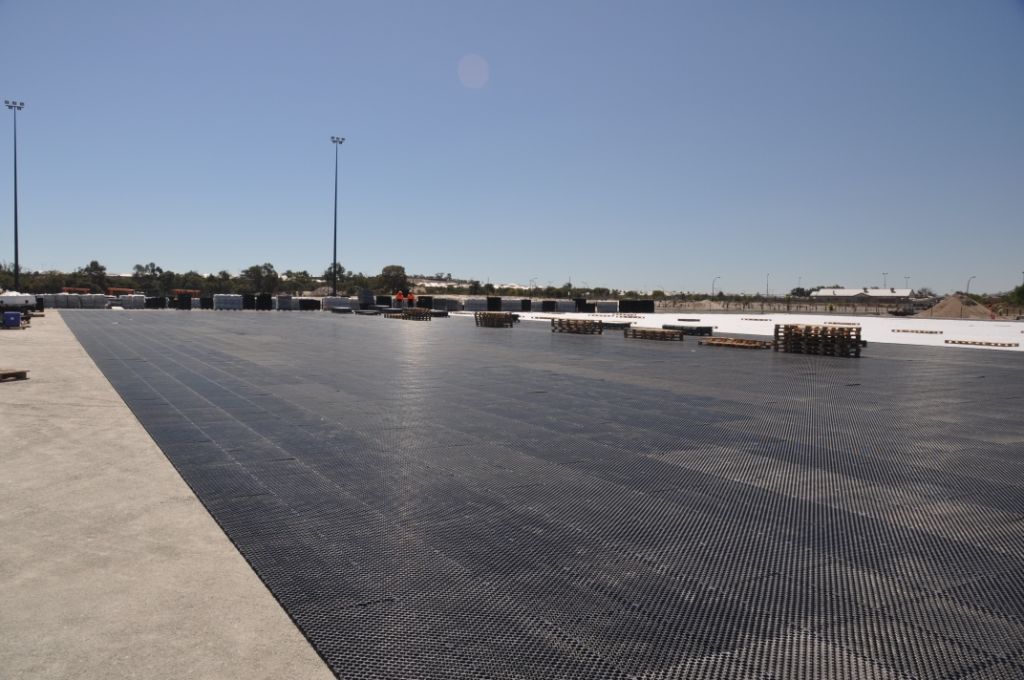

• Sportsfield Sub-soil Drainage
• Retaining Walls for Foundations
• Subfloors
• Tunnels Drainage
• Road & Highway Edge Drains
• Landscape French Drains
• Biofilters & Gas Dispersion systems
• Underdrain system for High Ground Water tables.
